Top 10 Custom Plastic Molds for High-Precision Manufacturing

In the competitive landscape of high-precision manufacturing, selecting the right custom plastic molds is essential for product integrity, dimensional accuracy, and efficient production. Below, we explore the top 10 custom plastic molds trusted by engineers, manufacturers, and OEMs for delivering unmatched precision and performance across industries like automotive, medical, electronics, and consumer goods.

1. Multi-Cavity Injection Molds for Mass Production Efficiency

Multi-cavity molds are a powerhouse in high-volume production. Designed with multiple identical cavities, they produce several parts per cycle, drastically cutting down lead time and cost per unit.

• Applications: Bottle caps, electronic housings, automotive fasteners

• Advantages: Reduced cycle time, lower unit cost, increased throughput

• Precision Level: ±0.005 mm tolerance achievable

These molds are typically CNC-machined from hardened tool steel or aluminum alloys, ensuring extended durability and repeatability.

2. Family Molds for Component Grouping

Family molds are engineered to produce multiple related components in a single injection cycle. This is especially valuable for assemblies where parts must fit and function together.

• Applications: Consumer electronics casings, multi-part medical kits

• Benefits: Synchronization in production, cost reduction on tooling

• Material Compatibility: ABS, PC, POM, PA

Their layout requires expert balancing to avoid flow imbalances and dimensional distortion across varying cavity sizes.

3. Hot Runner Molds for Material Efficiency

Hot runner molds integrate heated components to keep the plastic in a molten state inside the runner system, eliminating the need for cold sprues.

• Applications: Automotive interior parts, complex medical devices

• Advantages: Minimal material waste, faster cycle times, high consistency

• System Types: Valve gate, open gate systems

This mold system demands precise thermal control and is preferred in environments where high-cost resins are used.

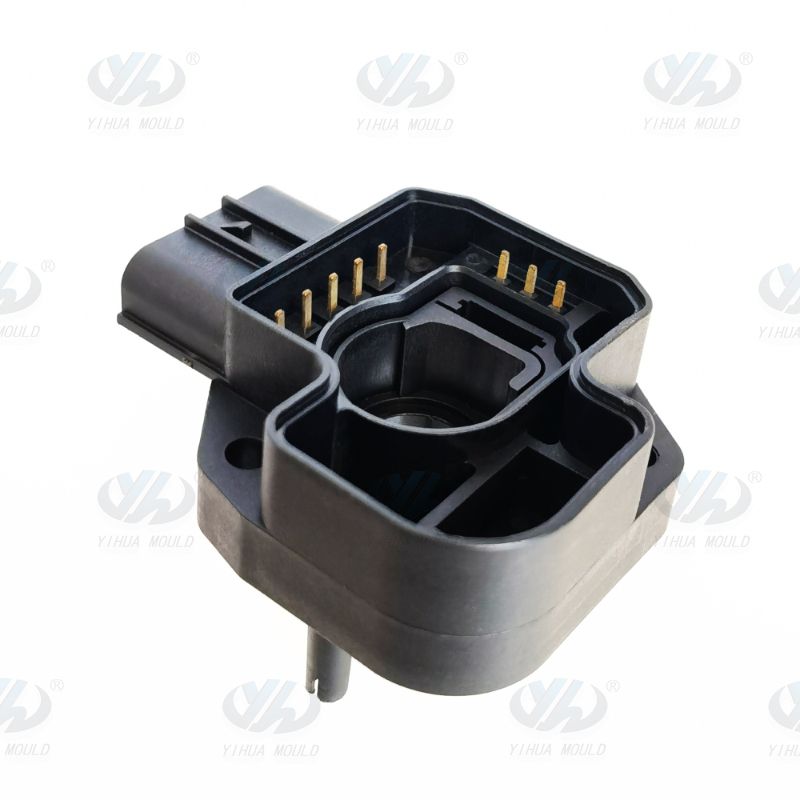

4. Insert Molds for Hybrid Manufacturing

Insert molding allows for the embedding of metal or ceramic components into plastic parts, producing a hybrid solution with enhanced functionality.

• Applications: Electrical connectors, threaded components, surgical tools

• Precision Challenges: Maintaining tight fits between dissimilar materials

• Design Tip: Use knurled inserts for maximum bond strength

Insert molds reduce assembly time and improve component reliability, particularly in electronics and automotive sectors.

5. Overmolding Molds for Ergonomic Products

Overmolding is used to layer one plastic material over another or over a pre-formed substrate, offering soft-touch, grip-enhancing finishes or dual-material functionality.

• Applications: Toothbrush handles, power tool grips, medical devices

• Materials: TPE over PP, TPU over ABS

• Tool Design Considerations: Shrinkage control, chemical bonding, gate positioning

This process improves aesthetics, functionality, and user comfort, making it a favorite in consumer product design.

6. Prototype Molds for Design Validation

Prototype molds are built for short runs to test fit, form, and function before moving to full-scale production. Typically made from aluminum or soft steel, they are economical and quick to fabricate.

• Applications: Product development, clinical trials, market testing

• Cycle Life: 1,000 to 10,000 shots

• Lead Time: As fast as 2-3 weeks

They are vital for reducing risks in product launches and fine-tuning designs based on real-world feedback.

7. Gas-Assist Injection Molds for Hollow Structures

Gas-assist molding uses pressurized nitrogen to create hollow sections within parts, reducing material use and improving strength-to-weight ratio.

• Applications: TV frames, furniture components, appliance handles

• Advantages: Warpage reduction, faster cooling, less sink marks

• Design Considerations: Controlled gas penetration, wall thickness uniformity

Perfect for large, thick-walled plastic parts where weight reduction and rigidity are essential.

8. Stack Molds for High-Volume, Space-Saving Production

Stack molds feature multiple mold parting lines (levels), producing more parts per machine cycle without increasing the press size.

• Applications: Medical syringes, cosmetic packaging, closures

• Design Benefits: Optimal use of machine tonnage, increased productivity

• Cost Factor: Higher upfront cost but faster ROI

They are ideal in cleanroom environments where production space is limited but volume is high.

9. Unscrewing Molds for Threaded Components

For products that require threaded features, unscrewing molds utilize automated mechanisms to rotate and release the part post-molding.

• Applications: Caps, closures, threaded medical devices

• Mechanical Systems: Servo-driven, hydraulic, or rack-and-pinion

• Precision Tolerance: ±0.01 mm on threaded diameters

This mold type ensures perfect thread quality and longevity, reducing the risk of wear and tear on sensitive components.

10. Micro Molds for Ultra-Precise Applications

Micro molds are engineered for parts as small as a grain of rice, with intricate features and sub-micron precision.

• Applications: Microfluidic chips, hearing aids, tiny gears

• Challenges: Tool wear, molding pressure, precision machining

• Materials Used: PEEK, LCP, high-grade PMMA

Micro molding supports medical diagnostics, aerospace, and precision optics, where even the smallest deviation can compromise function.

Key Considerations When Choosing a Custom Plastic Mold

To ensure success in high-precision manufacturing, factor in the following when selecting your mold:

• Material Type: Compatibility with polymer resin, chemical resistance

• Tooling Durability: Estimated cycles, cooling channels, wear resistance

• Production Volume: Prototyping vs. mass production requirements

• Tolerance Requirements: Based on end-use application

• Design Complexity: Gate locations, draft angles, wall thickness uniformity

Working with an experienced mold manufacturer who offers DFM (Design for Manufacturability) support is crucial to optimizing both cost and quality.

Conclusion

The right custom mold manufacturing is the foundation of any successful precision manufacturing operation. Whether you’re producing medical-grade micro parts or automotive assemblies, choosing from the top 10 mold types above ensures efficiency, accuracy, and long-term cost savings. Leverage the latest mold technologies to streamline your production processes and stay ahead in a competitive market.
